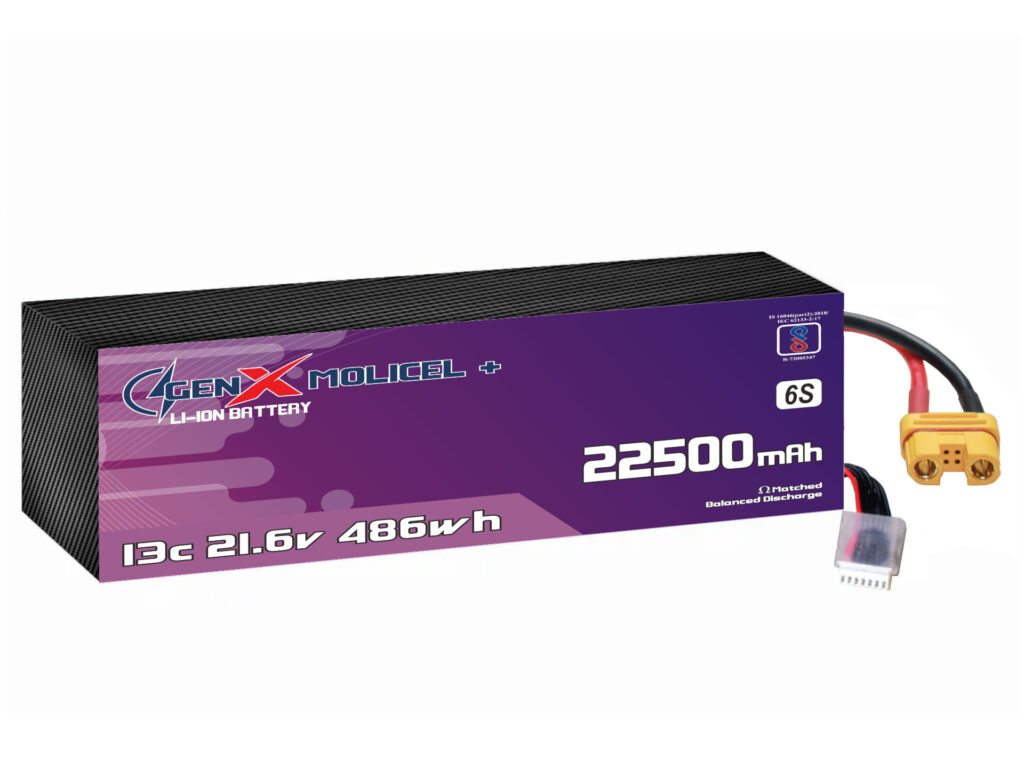

GenX Molicel+ 21.6V 22500mah 13C Premium Lithium Ion Rechargeable Battery
GenX Molicel+ 21.6V 22500mah 13C Premium Lithium Ion Rechargeable Battery
GenX Molicel Li-ion Battery
GEN-1122

GenX Molicel+ 21.6V 22500mah 13C Premium Lithium Ion Rechargeable Battery

₹21,185.00 (Excl. GST) (Excl. GST)

Out of stock

SKU: GEN-1122
Lead Time: Out of Stock
Weight: 2190 g

UPDATE `robokits_products_description` SET `products_description` = 'GenX Molicel+ Lithium Ion battery packs are the new best in high performance. They offer exceptional power and dependability for a wide array of applications. With a capacity of 22500mAh and a burst discharge rate of 13C these battery packs ensure…

Out of stock

Key Specifications
SKU GEN-1122
Nominal Voltage 21.6V (6S)
Capacity 22500 mAh
Energy 486 Wh
Cycle Life DOD 80% : 1C/1C 1000+ cycles DOD 80% : 3C/1C 800+ cycles DOD 80% : 1C/3C 800+ cycles DOD 80% : 1C/6C 300+ cycles
Charge Rate 13.5A(3C), CCCV, 4.20 V, 100mA cut-off
Discharge Rate 13C
Dimensions 228*58*80
Weight 2190 g
Lead Time Out of Stock

GenX Molicel+ 21.6V 22500mah 13C Premium Lithium Ion Rechargeable Battery

UPDATE `robokits_products_description` SET `products_description` = ‘

GenX Molicel+ Lithium Ion battery packs are the new best in high performance. They offer exceptional power and dependability for a wide array of applications. With a capacity of 22500mAh and a burst discharge rate of 13C these battery packs ensure top performance even under challenging conditions.

Additionally, GenX Molicel+ Lithium Ion battery packs are known for their impressive energy density and optimal weight-to-energy ratio. This makes them the most compact and efficient option in their category compared to other available choices.

The GenX Molicel+ 21.6V 6S5P 22500mah Lithium Ion Battery with XT90S Discharge Connector is both powerful and efficient, designed for demanding applications. It operates at a nominal voltage of 21.6V and consists of 6 cells in series and 5 cells in parallel, enhancing its voltage and capacity. With a nominal capacity of 22500mah, it provides ample energy storage to effectively power your devices. The XT90S discharge connector ensures a reliable and secure connection, making this battery pack an excellent choice for performance and reliability.

Each cell is made with high performance prime grade lithium ion raw material. Each battery pack is made with matched impedance cells to provide the maximum usable time after each charge. This battery is guaranteed for performance in professional drones, agriculture drones and other demanding multi-rotor and fixed wing aircrafts. This battery pack is suitable for long life and high recharge cycles up till approx. 800 Charges.
Battery Pack Specifications:
Nominal voltage 21.6V
Configuration 6S5P (6cells in Series | 5 cells in Parallel)
Nominal Capacity 22500mah
Continuous Discharge    13C
Internal Resistance 1.4mOhms (±)10%
Energy (Wh) 486.
Discharge connector XT90S
Burst Discharge 13C
Operating Temperature Range Ambient Charge : -20 to 60℃ Ambient Discharge: -40 to 60℃
Storage Temperature Range Storage Temprature : Standard 23℃ (65% Humidity)
Cycle Life DOD 80% : 1C/1C 1000+ cycles
DOD 80% : 3C/1C 800+ cycles
DOD 80% : 1C/3C 800+ cycles
DOD 80% : 1C/6C 300+ cycles
Standard Charge 4.5A(1C), CCCV, 4.20 V, 50mA cut-off
Rapid Charge 13.5A(3C), CCCV, 4.20 V, 100mA cut-off
Standard Discharge Current 0.5C
Dimension 228*58*80 mm (±)3%

*ZigZag Cell Structure
Weight (g) 2190g (±)10g

Package Includes:
  • 1 x GenX Molicel+ 21.6V 6S5P 22500mah 13C/13C Premium Lithium Ion Rechargeable Battery
*Please do not select air shipping for battery as the same is not permitted by airline regulations

*Note: Images may include actual or 3D renders for representation. Final product design features will be available zigzag cell structure.


‘ WHERE `robokits_products_description`.`products_id` = 6419 AND `robokits_products_description`.`language_id` = 1;

Technical Specifications
SKUGEN-1122
Nominal Voltage21.6V (6S)
Capacity22500 mAh
Energy486 Wh
Cycle LifeDOD 80% : 1C/1C 1000+ cycles DOD 80% : 3C/1C 800+ cycles DOD 80% : 1C/3C 800+ cycles DOD 80% : 1C/6C 300+ cycles
Charge Rate13.5A(3C), CCCV, 4.20 V, 100mA cut-off
Discharge Rate13C
Dimensions228*58*80
Weight2190 g
Lead TimeOut of Stock

Recommended Applications

This product is suitable for UAV, field electronics, industrial integration, robotics, and custom OEM deployments depending on the final system architecture.

UAV & Drone Systems

Built for endurance, payload efficiency, and field reliability in demanding flight operations.

Survey & Mapping

Suitable for repeatable mission profiles where power consistency and lightweight packaging matter.

Industrial Equipment

Supports rugged devices, edge systems, and field-deployed electronics requiring dependable power.

OEM Integration

A good fit for custom battery-pack programs and integrated product deployments.

Performance Positioning

This section helps technical buyers compare output, endurance, and form-factor suitability against other GenX product families.

What this means in practice

Higher power density and cleaner packaging typically improve flight endurance, payload flexibility, and system integration quality. The exact gain depends on the aircraft and mission profile.
