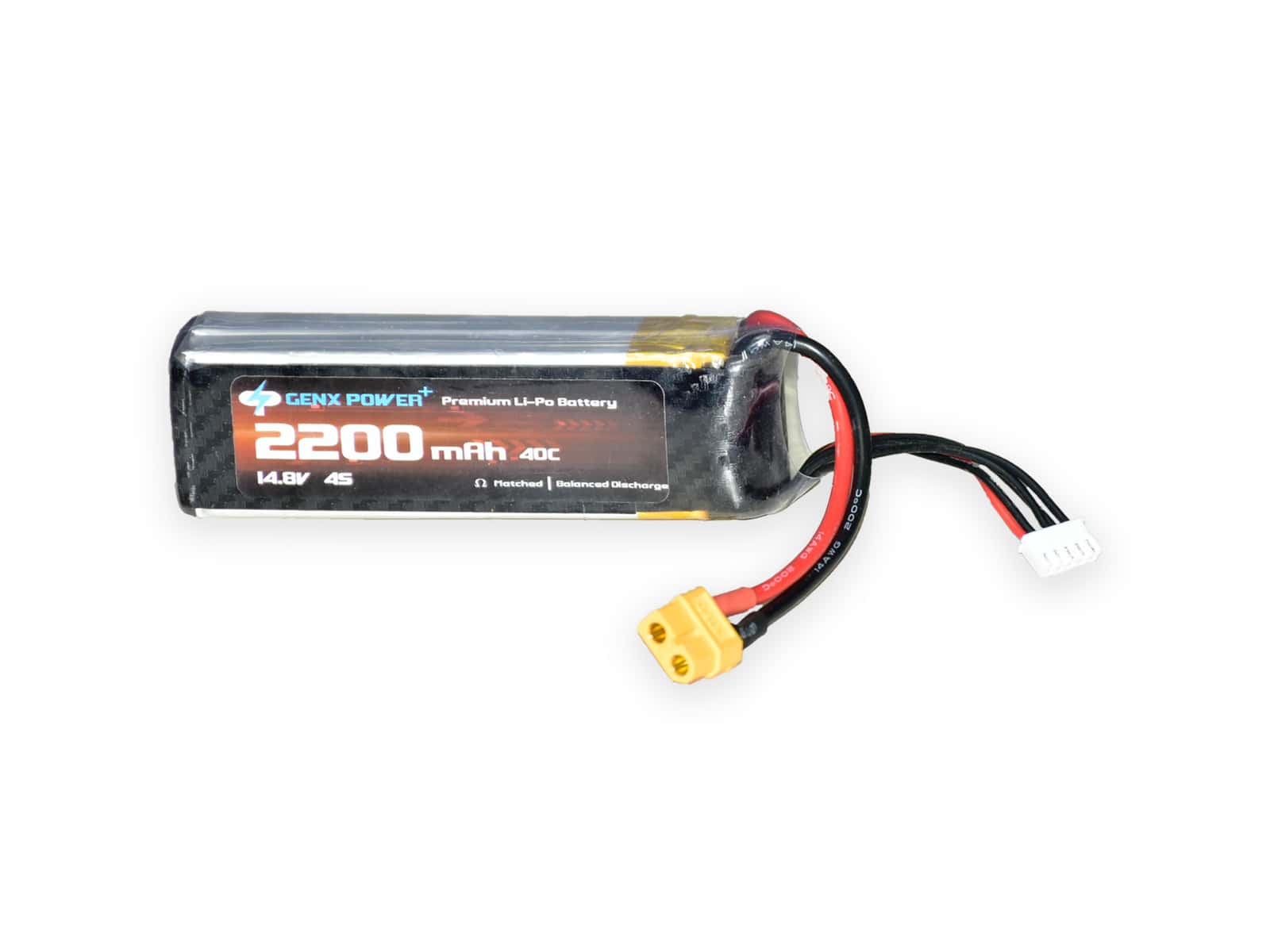

GenX LiPo Series
14.8V · 4S · 2200 mAh
40C Lithium Polymer UAV Pack
The GenX Power Premium Lipo batteries are the gold standard for performance in the High Discharge Lipo Battery Segment. The 2200mah Batttery is a 40C discharge rating cell which has a burst current of upto 80C. With t...
● In Stock210 Wh/kgLithium Polymer
Capacity
2200mAh
32.6 Wh
Discharge
40C
MAX DISCHARGE
Density
210Wh/kg
CLASS-LEADING
Unit Price · GST extra
Rs.1,865
Quantity
▲ Add 24 to unlock bulk pricing
Warranty: 12 Months
PAN India + Export
Custom connectors available
Engineered For
Mission-critical endurance for professional UAV platforms.
The GenX Power Premium Lipo batteries are the gold standard for performance in the High Discharge Lipo Battery Segment. The 2200mah Batttery is a 40C discharge rating cell which has a burst current of upto 80C. With t...
- Lithium Polymer cell platform at 210 Wh/kg pack-level energy density.
- Rated cycle life: DOD 80% : 1C/1C 400+ cycles DOD 80% : 1C/20C 250+ cycles (with a compatible BMS and charge profile).
- Operating window: Ambient Charge : 0 to 50℃ Ambient Discharge: 0 to 50℃.
- XT90S discharge connector fitted as standard; custom connector + harness work available on RFQ.
What ships
Pack Contents
- 1× 14.8V · 4S · 2200mAh · 40C
- Pre-installed discharge connector (XT90S)
- Balance lead (2515 Connector)
- Test report + cycle calibration certificate
Recommended For
Professional UAV and multirotor platformsOEM evaluation and replacement battery planningBulk procurement with connector and harness review
Procurement-ready Spec Sheet
Complete technical data
All values measured at 25°C ambient, full charge, fresh cycle. Tolerances available on request. Full per-batch test data attached on PO confirmation.
Electrical
| Nominal Voltage | 14.8 V |
| Configuration | 4S1P |
| Capacity | 2200 mAh |
| Watt-Hour Rating | 32.6 Wh |
| Continuous Discharge | 40C |
| Burst Discharge (3s) | 60C |
| Standard Charge | 0.5C |
| Rapid Charge | 1C |
| Charging Time | 90 Mins |
| Internal Resistance (typ.) | Available on RFQ |
| Cycle Life @ 80% DoD | DOD 80% : 1C/1C 400+ cycles DOD 80% : 1C/20C 250+ cycles |
| Pack Cycle Life | 400 cycles |
Mechanical
| Cell Chemistry | Lithium Polymer |
| Energy Density | 210 Wh/kg |
| Weight | 345 g |
| Dimensions (L × W × H) | 108*36*30 mm |
| Case Material | Plastic Sleeve |
| Connector (Discharge) | XT90S |
| Connector (Balance) | 2515 Connector |
Operating Conditions
| Operating Temperature | Ambient Charge : 0 to 50℃ Ambient Discharge: 0 to 50℃ |
| Storage Temperature | Storage Temprature : Standard 23℃ (65% Humidity) |
| Ingress (pack-only) | Non-rated; integrate in IP-rated housing |
Warranty & Documentation
| Warranty | 12 Months |
| MSDS | Provided on RFQ |
| Discharge Test Report | Pack-level, batch-tagged |
Procurement Documents
Spec sheets, test reports & compliance docs
Published documents download immediately. Batch-specific test data, MSDS and compliance paperwork are issued with quotation.
No public documents for this pack yet
Datasheet, discharge test report, MSDS / UN 38.3 summary and warranty terms for this pack are shared with your quotation.
Request documents via RFQ
Replied within 4 business hours
VIVEK K.
VERIFIED BUYER
★★★★★
LNMIIT ..
VERIFIED BUYER
★★★★★
Wamiq H.
VERIFIED BUYER
★★★★★
RUTVIK T.
VERIFIED BUYER
★★★★★
Gulshan M.
VERIFIED BUYER
★★★★★
Yash M.
VERIFIED BUYER
★★★★★
Rajiv G.
VERIFIED BUYER
★★★★★
Lazer D.
VERIFIED BUYER
★★★★★
Procurement Comparison
Compare across the Pro+ family
| Specification | 14.8V · 4S · 2200mAh · 40C | 22.8V · 18000mAh · 2C | 53.2V · 18000mAh · 2C | 45.6V · 29000mAh · 2C |
|---|---|---|---|---|
| Voltage | 14.8V | 22.8V | 53.2V | 45.6V |
| Capacity | 2200 mAh | 18000mAh | 18000mAh | 29000mAh |
| Continuous C | 40C | 2C | 2C | 2C |
| Energy Density | 210 Wh/kg | 575 Wh/kg | 575 Wh/kg | 575 Wh/kg |
| Weight | 345 g | 918 g | 2061 g | 2680 g |
| Category | Professional UAV and multirotor platforms | Battery | Battery | Battery |
| Indicative Price | Rs. 1,865 | Rs. 96,320 | Rs. 2,24,435 | Rs. 3,09,265 |
Watt-hour: 32.6 Wh. Indicative figures — final pricing and availability confirmed on quotation.
RFQ Desk · Reply within 24h
Request quotation for fleet, OEM, or qualification volume.
Tell us your platform, volume, and timeline. We'll respond with pricing, lead-time, batch-tagged test data, and connector / harness options. Quotation is non-binding and includes GST + freight.
- Reply window: under 24h business hours
- Bulk pricing tiers from 25 packs upward
- Per-batch test data attached on PO confirmation
- Custom connector + harness work routed to engineering
- GST invoice · PAN India · Export-ready paperwork
