Voltage
44.4V
12S NOMINAL
X-00.000SCALE 1:1.2X-205*369*143 or 205*90*143
205*369*143 or 205*90*143 mm
ORTHO · MAIN·● LIVE

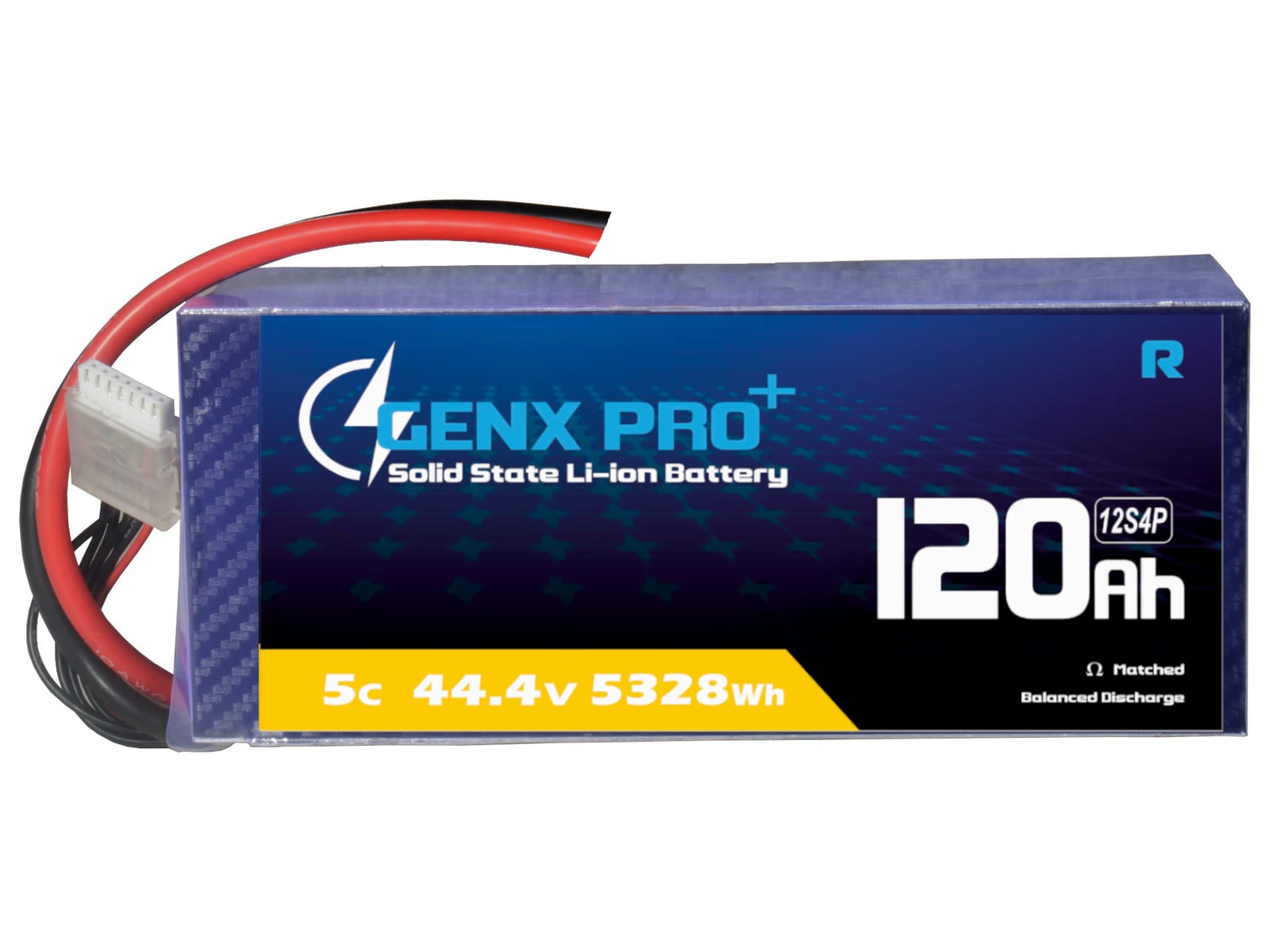

GenX Pro+ · Solid-State Series
44.4V · 12S · 120000 mAh
5C Lithium Ion Solid State UAV Pack
The GenX Pro Solid State Li-Ion batteries are the gold standard for performance in the High Discharge Li-Ion Battery Segment. The 120000mAh Batttery is a 600A continuous discharge rating cell which has a burst current...
● In Stock280 Wh/kgLithium Ion Solid State
Capacity
120000mAh
5328.0 Wh
Discharge
5C
7C CONTINUOUS
Density
280Wh/kg
CLASS-LEADING
Unit Price · GST extra
Rs.1,58,551
Quantity
▲ Add 24 to unlock bulk pricing
Warranty: 3 Months
PAN India + Export
Custom connectors available
Engineered For
Mission-critical endurance for professional UAV platforms.
The GenX Pro Solid State Li-Ion batteries are the gold standard for performance in the High Discharge Li-Ion Battery Segment. The 120000mAh Batttery is a 600A continuous discharge rating cell which has a burst current...
- Lithium Ion Solid State cell platform at 280 Wh/kg pack-level energy density.
- Rated cycle life: DOD 80% : 1C/1C 800+ cycles DOD 80% : 1C/3C 650+ cycles DOD 80% : 1C/5C 500+ cycles (with a compatible BMS and charge profile).
- Operating window: Ambient Charge : 0 to 60℃ Ambient Discharge: -20 to 60℃.
- AS150U discharge connector fitted as standard; custom connector + harness work available on RFQ.
What ships
Pack Contents
- 1× 44.4V · 12S · 120000mAh · 5C
- Pre-installed discharge connector (AS150U)
- Balance lead (Molex 16P)
- Test report + cycle calibration certificate
Recommended For
GenX Solid state BatteriesProfessional UAV and multirotor platformsOEM evaluation and replacement battery planningBulk procurement with connector and harness review
Procurement-ready Spec Sheet
Complete technical data
All values measured at 25°C ambient, full charge, fresh cycle. Tolerances available on request. Full per-batch test data attached on PO confirmation.
Electrical
| Nominal Voltage | 44.4 V |
| Configuration | 12S4P |
| Capacity | 120000 mAh |
| Watt-Hour Rating | 5328.0 Wh |
| Continuous Discharge | 7C |
| Burst Discharge (3s) | 10C |
| Standard Charge | 15A(0.5C), CCCV, 4.20V 600mA cut-off |
| Rapid Charge | 60A(2C), CCCV, 4.20V 600mA cut-off |
| Charging Time | 90 Mins |
| Internal Resistance (typ.) | Available on RFQ |
| Cycle Life @ 80% DoD | DOD 80% : 1C/1C 800+ cycles DOD 80% : 1C/3C 650+ cycles DOD 80% : 1C/5C 500+ cycles |
| Pack Cycle Life | 800 cycles |
Mechanical
| Cell Chemistry | Lithium Ion Solid State |
| Energy Density | 280 Wh/kg |
| Weight | On request |
| Dimensions (L × W × H) | 205*369*143 or 205*90*143 mm |
| Case Material | Aluminium Composite |
| Connector (Discharge) | AS150U |
| Connector (Balance) | Molex 16P |
Operating Conditions
| Operating Temperature | Ambient Charge : 0 to 60℃ Ambient Discharge: -20 to 60℃ |
| Storage Temperature | Storage Temprature : Standard 23℃ (65% Humidity) |
| Ingress (pack-only) | Non-rated; integrate in IP-rated housing |
Warranty & Documentation
| Warranty | 3 Months |
| MSDS | Provided on RFQ |
| Discharge Test Report | Pack-level, batch-tagged |
Procurement Documents
Spec sheets, test reports & compliance docs
Published documents download immediately. Batch-specific test data, MSDS and compliance paperwork are issued with quotation.
No public documents for this pack yet
Datasheet, discharge test report, MSDS / UN 38.3 summary and warranty terms for this pack are shared with your quotation.
Request documents via RFQ
Replied within 4 business hours
SRISAILAM A.
VERIFIED BUYER
★★★★★
Deepankar
VERIFIED BUYER
★★★★★
Procurement Comparison
Compare across the Pro+ family
| Specification | 44.4V · 12S · 120000mAh · 5C | 22.8V · 18000mAh · 2C | 53.2V · 18000mAh · 2C | 45.6V · 29000mAh · 2C |
|---|---|---|---|---|
| Voltage | 44.4V | 22.8V | 53.2V | 45.6V |
| Capacity | 120000 mAh | 18000mAh | 18000mAh | 29000mAh |
| Continuous C | 7C | 2C | 2C | 2C |
| Energy Density | 280 Wh/kg | 575 Wh/kg | 575 Wh/kg | 575 Wh/kg |
| Weight | — | 918 g | 2061 g | 2680 g |
| Category | GenX Solid state Batteries | Battery | Battery | Battery |
| Indicative Price | Rs. 1,58,551 | Rs. 96,320 | Rs. 2,24,435 | Rs. 3,09,265 |
Watt-hour: 5328.0 Wh. Indicative figures — final pricing and availability confirmed on quotation.
RFQ Desk · Reply within 24h
Request quotation for fleet, OEM, or qualification volume.
Tell us your platform, volume, and timeline. We'll respond with pricing, lead-time, batch-tagged test data, and connector / harness options. Quotation is non-binding and includes GST + freight.
- Reply window: under 24h business hours
- Bulk pricing tiers from 25 packs upward
- Per-batch test data attached on PO confirmation
- Custom connector + harness work routed to engineering
- GST invoice · PAN India · Export-ready paperwork
Within The Same Platform Class
Buyers of this pack also evaluate
Battery
GenX Pro+ Solid State 53.2V 14S 18000mah 3C Premium Lithium Ion Solid State Rechargeable Battery 575wh/kg
53.2V
Volt
18000mAh
Cap
2C
Disch
Rs. 2,24,435View ·
Battery
GenX Pro+ Solid State 45.6V 12S 29000mah 3C Premium Lithium Ion Solid State Rechargeable Battery 575wh/kg
45.6V
Volt
29000mAh
Cap
2C
Disch
Rs. 3,09,265View ·
Battery
GenX Pro+ Solid State 45.6V 12S 54000mah 3C Premium Lithium Ion Solid State Rechargeable Battery 575wh/kg
45.6V
Volt
54000mAh
Cap
2C
Disch
Rs. 5,74,615View ·
Procurement FAQ
Questions buyers actually ask
That depends on your platform, motor efficiency and payload — there is no honest single number. Share your platform spec and current pack on the RFQ and our engineering team will model expected endurance for this pack from its measured discharge data.
Higher-stability chemistries (Li-ion and solid-state) flatten the thermal runaway curve compared to conventional polymer-electrolyte cells, particularly under sustained high C-rate draw. No pack is 'fire-proof' — pack integration, BMS, and platform-side current limits remain essential. UN 38.3 test summary available on request.
Yes. Each pack ships with the discharge connector listed in its specification; alternative XT / EC / AS-series connectors and custom harness designs (split, parallel, BMS-integrated) are routed through engineering — typical turnaround is 2-3 weeks for first article, faster on repeat orders.
Manufacturer warranty (period listed in this pack's specification) against cell defects and capacity degradation outside spec tolerance when used within the stated operating envelope. Cycle abuse, water ingress, and platform-side over-draw events are excluded. Replacement is pack-level, not cell-level.
